Model2 Architecture - table생성, 홈화면(index,dispatcher 등), error페이지

2019. 7. 29. 22:32

- 회원 등록/수정/삭제/조회가 가능한 웹서비스

1. study_db - client table 생성

create table client( clientId varchar(50) not null, clientPassword varchar(100) not null, clientName varchar(30) not null, clientEmail varchar(100) not null, clientPhone varchar(100), clientAddress varchar(100), primary key(clientId) )

2. 홈화면

1) WebContent - index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>model2</title> </head> <body> <h3>Model2 Architecture</h3> <p>Model2 Controller(servlet)을 통해 Business로직과 view를 분리 </p> <img src="model2.gif"/> <h3>메뉴</h3> <p>Model2를 이용해 회원관리하고, 회원만 게시판을 이용할 수 있게함.</p>  <table border="1"> <tr> <td rowspan="4">회원관리</td> <td><a href="#">회원등록</a></td> </tr> <tr> <td><a href="#">회원수정</a></td> </tr> <tr> <td><a href="#">회원삭제</a></td> </tr> <tr> <td><a href="#">회원조회</a></td> </tr> <tr> <td rowspan="2">회원전용</td> <td><a href="#">로그인</a></td> </tr> <tr> <td><a href="#">게시판</a></td> </tr> </table> </body> </html>

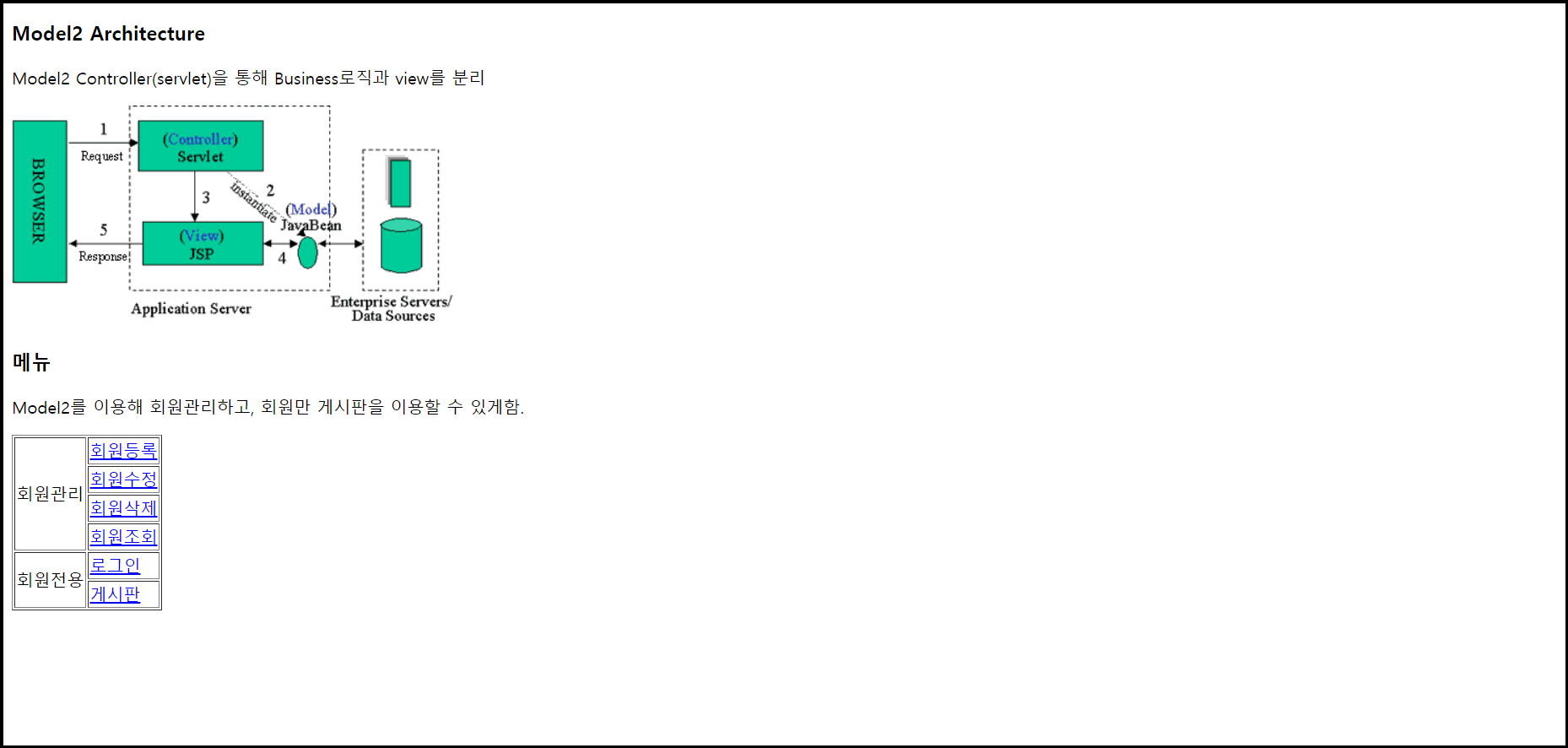

- 12번째 줄 이미지

[이미지출처]http://blog.naver.com/PostView.nhn?blogId=kimstcool01&logNo=220908881839&parentCategoryNo=&categoryNo=27&viewDate=&isShowPopularPosts=true&from=search

-15번째 줄부터 채워나가면 됨.

3. Controller

2) src - loader.DbDriverLoader.java

package loader; import javax.servlet.ServletContextEvent; import javax.servlet.ServletContextListener; import javax.servlet.annotation.WebListener; @WebListener public class DbDriverLoader implements ServletContextListener { public DbDriverLoader() { } public void contextDestroyed(ServletContextEvent arg0) { } public void contextInitialized(ServletContextEvent arg0) { try { Class.forName("org.mariadb.jdbc.Driver"); System.out.println("db driver loading..."); } catch (ClassNotFoundException e) { e.printStackTrace(); } } }

3) src - controller.DispatcherServlet.java

package controller; import java.io.IOException; import javax.servlet.ServletException; import javax.servlet.annotation.WebServlet; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; @WebServlet("/DispatcherServlet") public class DispatcherServlet extends HttpServlet { private static final long serialVersionUID = 1L; public DispatcherServlet() { super(); } protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { handleRequest(request, response); } protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { request.setCharacterEncoding("utf-8"); handleRequest(request, response); } private void handleRequest(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException{ try { // 클라이언트의 요청(command)를 확인 -> HandlerMapping을 통해 구현체를 반환받아 실행 String command=request.getParameter("command"); // 리턴 정보는 1.이동할 view와 2.이동방식(forward/redirect) String url=HandlerMapping.getInstance().create(command).execute(request,response); // 리턴 방식에 따라 클라이언트에게 이동되도록 처리 if(url.trim().startsWith("redirect:")) response.sendRedirect(url.trim().substring(9)); else request.getRequestDispatcher(url).forward(request, response); } catch (Exception e) { //Exception 발생 시 error.jsp 페이지로 응답 처리 e.printStackTrace(); response.sendRedirect("error.jsp"); } } }

4) src - controller.HandlerMapping.java

package controller; /* * 컨트롤러 구현체 생성을 전담하는 클래스 * DispatcherServlet과 Controller 계열 구현체들과 결합도를 낮춤 */public class HandlerMapping { private static HandlerMapping instance=new HandlerMapping(); private HandlerMapping() {} public static HandlerMapping getInstance() { return instance; } public Controller create(String command) { Controller c=null; //여기서부터 처리할 command와 실제 Controller Mapping return c; } }

5) src - controller.Controller.java

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; /* * 실제 컨트롤러 업무를 수행하는 구상클래스(구현체)들이 implements 하는 인터페이스 * DispatcherServlet은 실제 컨트롤러 구현체의 메소드를 확인하지 않아도 상위 Controller 인터페이스만 보고 사용 가능. */ public interface Controller { public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception; }

4. Model

1) src - model.ClientDAO

package model; import java.sql.Connection; import java.sql.DriverManager; import java.sql.PreparedStatement; import java.sql.ResultSet; import java.sql.SQLException; public class ClientDAO { private static ClientDAO instance=new ClientDAO(); private ClientDAO() {} public static ClientDAO getInstance() { return instance; } public Connection getConnection() throws SQLException{ return DriverManager.getConnection("jdbc:mysql://localhost:3306/study_db","study_user","user"); } public void closeAll(PreparedStatement pstmt,Connection con) throws SQLException{ if(pstmt!=null) pstmt.close(); if(con!=null) con.close(); } public void closeAll(ResultSet rs,PreparedStatement pstmt,Connection con) throws SQLException{ if(rs!=null) rs.close(); closeAll(pstmt, con); } //여기서부터 필요한 메소드 추가 }

2) src - model.ClientDTO

package model; public class ClientDTO { private String clientId; private String clientPassword; private String clientName; private String clientEmail; private String clientPhone; private String clientAddress; public ClientDTO() { super(); } public ClientDTO(String clientId, String clientPassword, String clientName, String clientEmail, String clientPhone, String clientAddress) { super(); this.clientId = clientId; this.clientPassword = clientPassword; this.clientName = clientName; this.clientEmail = clientEmail; this.clientPhone = clientPhone; this.clientAddress = clientAddress; } public String getClientId() { return clientId; } public void setClientId(String clientId) { this.clientId = clientId; } public String getClientPassword() { return clientPassword; } public void setClientPassword(String clientPassword) { this.clientPassword = clientPassword; } public String getClientName() { return clientName; } public void setClientName(String clientName) { this.clientName = clientName; } public String getClientEmail() { return clientEmail; } public void setClientEmail(String clientEmail) { this.clientEmail = clientEmail; } public String getClientPhone() { return clientPhone; } public void setClientPhone(String clientPhone) { this.clientPhone = clientPhone; } public String getClientAddress() { return clientAddress; } public void setClientAddress(String clientAddress) { this.clientAddress = clientAddress; } @Override public String toString() { return "ClientDTO [clientId=" + clientId + ", clientPassword=" + clientPassword + ", clientName=" + clientName + ", clientEmail=" + clientEmail + ", clientPhone=" + clientPhone + ", clientAddress=" + clientAddress + "]"; } }

5. 에러페이지

1) WebContent - error.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Insert title here</title> </head> <body> <img src="return.jpeg" /><br> <p>Console 확인 <a href="index.jsp">돌아가기</a></p> </body> </html>

- 10째 줄 이미지

[이미지 출처] https://namu.wiki/w/%EC%95%88%20%EB%8F%BC%20%EC%95%88%20%EB%B0%94%EA%BF%94%EC%A4%98%20%EB%B0%94%EA%BF%80%20%EC%83%9D%EA%B0%81%20%EC%97%86%EC%96%B4%20%EB%B9%A8%EB%A6%AC%20%EB%8F%8C%EC%95%84%EA%B0%80

[참고] 모델2 개념 참고 https://thatisgood.tistory.com/entry/model1-vs-model2-%EC%B0%A8%EC%9D%B4%EC%A0%90
