게시판 - webstudy-board - Index 페이지

2019. 8. 11. 00:53

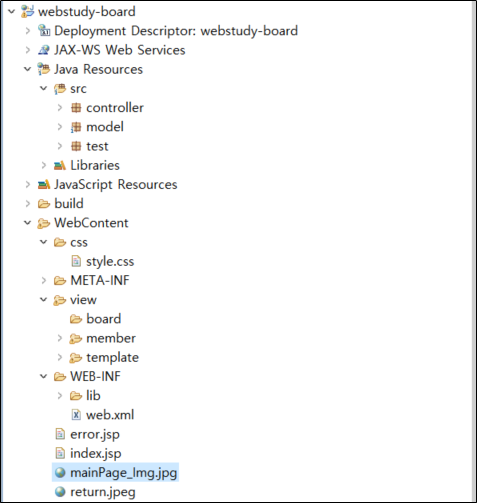

1. webstudy-board 폴더 구조

1. index 페이지와 error 페이지

1) WebContent-index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <jsp:forward page="DispatcherServlet"> <jsp:param name="command" value="mainPage"/> </jsp:forward>

2) WebContent-error.jsp

에러페이지 이동하기

3) WebContent - view - template - home.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>회원관리 & 게시판</title> <link rel="stylesheet" href="${pageContext.request.contextPath}/css/style.css"> </head> <body> <div class="header"> <c:import url="/view/template/header.jsp"></c:import> </div> <div class="row"> <div class="leftcolumn"> <c:import url="/view/template/sidebar.jsp"></c:import> </div> <div class="rightcolumn"> <c:import url="${url}"></c:import> </div> </div> <div class="footer"> <c:import url="/view/template/footer.jsp"></c:import> </div> </body> </html>

4) WebContent - view - template - header.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <h1>게시판 테스트</h1> <p>게시판 테스트 중입니다. 나중에 페이징빈도 할 것 입니다.</p>

5) WebContent - view - template - sidebar.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>  <div class="card"> 회원부분 </div>  <div class="card"> 메뉴부분 </div>

6) WebContent - view - template - footer.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <h2>푸터임</h2>

7) WebContent - view - template - mainPage.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <div class="card"> <img src="./mainPage_Img.jpg"/> </div>

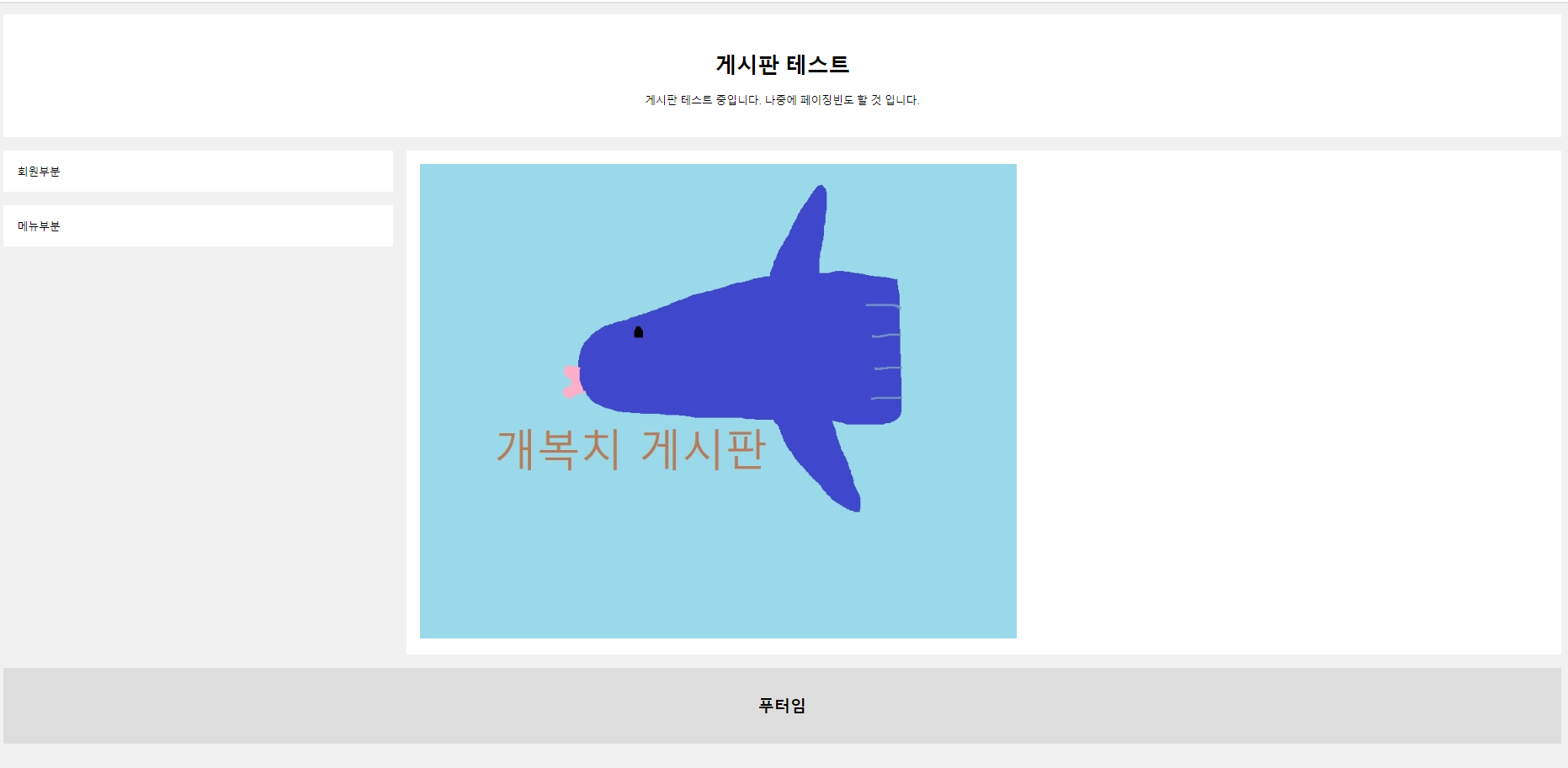

- mainPage 이미지

2. Controller

1) src - controller.HandlerMapping.java

package controller; public class HandlerMapping { private static HandlerMapping instance=new HandlerMapping(); private HandlerMapping() {} public static HandlerMapping getInstance() { return instance; } public Controller create(String command) { Controller c=null; //메인 if(command.equals("mainPage")) c=new MainPageController(); //회원관리 //게시판 return c; } }

2) src - controller.MainPageController.java

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; public class MainPageController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { request.setAttribute("url", "/view/template/mainPage.jsp"); return "/view/template/home.jsp"; } }

3.CSS

1) WebContent - css - style.css
