1. Template

1) WebContent - view - template - sidebar.jsp 수정

<p><a href="${pageContext.request.contextPath}/DispatcherServlet?command=updatePage">회원수정</a></p>

2. View

1) WebContent - view - member - update.jsp 추가

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <div class="card"> <form action="DispatcherServlet" method="post"> <input type="hidden" name="command" value="update"> <table> <tr> <td>아이디</td> <td><input type="text" name="clientId" value="${clientDTOinfo.clientId}" readonly></td> </tr> <tr> <td>비밀번호</td> <td><input type="password" name="clientPassword" ></td> </tr> <tr> <td>이름</td> <td><input type="text" name="clientName" value="${clientDTOinfo.clientName}" ></td> </tr> <tr> <td>이메일</td> <td><input type="text" name="clientEmail" value="${clientDTOinfo.clientEmail}" ></td> </tr> <tr> <td>전화번호</td> <td><input type="text" name="clientPhone" value="${clientDTOinfo.clientPhone}" ></td> </tr> <tr> <td>주소</td> <td><input type="text" name="clientAddress" value="${clientDTOinfo.clientAddress}" ></td> </tr> <tr rowspan="2"> <td><input type="submit" value="수정"/></td> </tr> </table> </form> </div>

2) WebContent - view - member - update_result.jsp 추가

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <script> alert("수정이 완료되었습니다."); location.href="http://localhost:8080/webstudy-board/DispatcherServlet?command=updatePage"; </script>

3. Model

1) src - model.ClientDAO.java에 getClientInfo 메소드 추가(회원 수정페이지에 정보 띄우기 위해)

//3. 아이디로 회원정보 찾기(패스워드 제외) public ClientDTO getClientInfo(String clientId) throws SQLException { Connection con = null; PreparedStatement pstmt = null; ResultSet rs=null; ClientDTO resultDTO=null; try { con = getConnection(); String sql="select * from client where clientId=?"; pstmt = con.prepareStatement(sql); pstmt.setString(1, clientId); rs=pstmt.executeQuery(); if(rs.next()) resultDTO =new ClientDTO(rs.getString(1), null, rs.getString(3), rs.getString(4), rs.getString(5), rs.getString(6)); } catch (SQLException e) { e.printStackTrace(); } finally { closeAll(rs,pstmt, con); } return resultDTO; }

2) src - test.TestGetClientInfo.java 추가

package test; import java.sql.SQLException; import model.ClientDAO; import model.ClientDTO; public class TestGetClientInfo { public static void main(String[] args) { String clientId="xiumin"; try { ClientDTO clientDTOinfo=ClientDAO.getInstance().getClientInfo(clientId); System.out.println(clientDTOinfo); } catch (SQLException e) { e.printStackTrace(); } } }

3) src - model.ClientDAO.java에 updateMemberInfo 메소드 추가

public void updateMemberInfo(ClientDTO clientDTO) throws SQLException { Connection con = null; PreparedStatement pstmt = null; try { con = getConnection(); String sql = "update client set clientPassword=?, clientName=?, clientEmail=?,clientPhone=?,clientAddress=? where clientId=?"; pstmt = con.prepareStatement(sql); pstmt.setString(1, clientDTO.getClientPassword()); pstmt.setString(2, clientDTO.getClientName()); pstmt.setString(3, clientDTO.getClientEmail()); pstmt.setString(4, clientDTO.getClientPhone()); pstmt.setString(5, clientDTO.getClientAddress()); pstmt.setString(6, clientDTO.getClientId()); pstmt.execute(); } catch (SQLException e) { e.printStackTrace(); } finally { closeAll(pstmt, con); } }

4) src - test.TestUpdateMemberInfo.java

package test; import java.sql.SQLException; import model.ClientDAO; import model.ClientDTO; public class TestUpdateMemberInfo { public static void main(String[] args) { try { ClientDTO oldInfo=ClientDAO.getInstance().getClientInfo("suman"); System.out.println("예전정보 : "+oldInfo); ClientDTO newInfo=new ClientDTO("suman", "sm1234", "이수만", "smNo1@smtown.com", "010-0000-0000", "SM공화국"); System.out.println("변경정보 : "+newInfo); } catch (SQLException e) { // TODO Auto-generated catch block e.printStackTrace(); } } }

4. Controller

1) src - controller.HandlerMapping.java 에 updatePage,update 추가

else if(command.equals("updatePage")) // 회원수정 페이지 이동 c=new UpdatePageController(); else if(command.equals("update")) //회원수정 처리 c=new UpdateController();

2) src - controller.UpdatePageController.java 추가

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import javax.servlet.http.HttpSession; import model.ClientDAO; import model.ClientDTO; public class UpdatePageController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { HttpSession session = request.getSession(false); ClientDTO clientDTO=(ClientDTO) session.getAttribute("clientDTO"); if(session==null||session.getAttribute("clientDTO")==null){ return "redirect:index.jsp"; } ClientDTO clientDTOinfo=ClientDAO.getInstance().getClientInfo(clientDTO.getClientId()); request.setAttribute("clientDTOinfo", clientDTOinfo); request.setAttribute("url", "/view/member/update.jsp"); return "/view/template/home.jsp"; } }

3) src - controller.update.java 추가

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import javax.servlet.http.HttpSession; import model.ClientDAO; import model.ClientDTO; public class UpdateController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { HttpSession session = request.getSession(false); if(session==null||session.getAttribute("clientDTO")==null){ return "redirect:index.jsp"; } String clientId=request.getParameter("clientId"); String clientPassword=request.getParameter("clientPassword"); String clientName=request.getParameter("clientName"); String clientEmail=request.getParameter("clientEmail"); String clientPhone=request.getParameter("clientPhone"); String clientAddress=request.getParameter("clientAddress"); ClientDTO dto = new ClientDTO(clientId, clientPassword, clientName, clientEmail, clientPhone, clientAddress); ClientDAO.getInstance().updateMemberInfo(dto); return "redirect:view/member/update_result.jsp"; } }

1. Template

1) WebContent - view - template - sidebar.jsp 수정

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <c:choose> <c:when test="${sessionScope.clientDTO==null}"> <!-- 로그인 부분 --> <div class="card"> <h3>로그인</h3> <form method="post" action="${pageContext.request.contextPath}/DispatcherServlet"> <input type="hidden" name="command" value="login"> <p>아이디 <input type="text" name="clientId" placeholder="아이디" size="12"></p> <p>패스워드 <input type="password" name="clientPassword" placeholder="비밀번호" size="12"></p> <input type="submit" value="로그인"> <a href="${pageContext.request.contextPath}/DispatcherServlet?command=registerPage">회원가입</a></p> </form> </div> </c:when> <c:otherwise> <div class="card"> <p>${sessionScope.clientDTO.clientName}님    반갑습니다.</p> <p><a href="${pageContext.request.contextPath}/DispatcherServlet?command=logout">로그아웃</a></p> <p><a href="#">회원수정</a></p> <p><a href="#">회원탈퇴</a></p> <p><a href="${pageContext.request.contextPath}/index.jsp">홈으로</a>  </p> </div> <!-- 메뉴부분 --> <div class="card"> <h3>게시판</h3> <a href="#">게시판 보기</a> </div> </c:otherwise> </c:choose>

2. View

1) WebContent - view - member - login_result.jsp 추가

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <!-- 로그인 실패 : 세션 없음 --> <c:if test="${sessionScope.clientDTO==null}"> <script lang="javascript"> alert('아이디가 없거나 패스워드가 맞지 않아 로그인에 실패하셨습니다.'); location.href='http://localhost:8080/webstudy-board/'; </script> </c:if> <!-- 로그인 성공 : 세션 있음 --> <c:if test="${sessionScope.clientDTO!=null}"> <script lang="javascript"> var name='${sessionScope.clientDTO.clientName}'; alert(name+'님 안녕하세요'); location.href='http://localhost:8080/webstudy-board/'; </script> </c:if>

3. Model

1) src - model.ClientDAO.java에 login 로그인 메소드 추가

public ClientDTO login(ClientDTO clientDTO) throws SQLException { ClientDTO resultDTO=null; Connection con=null; PreparedStatement pstmt=null; ResultSet rs=null; try { con=getConnection(); String sql="select clientId,clientName from client where clientId=? and clientPassword=?"; pstmt=con.prepareStatement(sql); pstmt.setString(1, clientDTO.getClientId()); pstmt.setString(2, clientDTO.getClientPassword()); rs=pstmt.executeQuery(); if(rs.next()) resultDTO=new ClientDTO(rs.getString(1), null, rs.getString(2), null, null, null); }finally { closeAll(rs, pstmt, con); } return resultDTO; }

2) src - test.TestLogin.java 추가(login 메소드 테스트)

package test; import model.ClientDAO; import model.ClientDTO; public class TestLogin { public static void main(String[] args) { String clientId="xiumin"; String clientPassword="exo1234"; try { ClientDTO clientDTO=ClientDAO.getInstance().login(new ClientDTO(clientId,clientPassword,null,null,null,null)); System.out.println(clientDTO); } catch (Exception e) { e.printStackTrace(); } } }

4. Controller

1) src - controller.HandlerMapping.java에 login, logout command 추가;

else if(command.equals("login")) //로그인 c=new LoginController(); else if(command.equals("logout")) //로그아웃 c=new LogoutController();

2) src - controller.LoginController.java 추가

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import javax.servlet.http.HttpSession; import model.ClientDAO; import model.ClientDTO; public class LoginController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { String clientId=request.getParameter("clientId"); String clientPassword=request.getParameter("clientPassword"); ClientDTO clientDTO=ClientDAO.getInstance().login(new ClientDTO(clientId,clientPassword,null,null,null,null)); HttpSession session=request.getSession(); session.setAttribute("clientDTO", clientDTO); return "redirect:view/member/login_result.jsp"; } }

3) src - controller.LogoutController.java 추가

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import javax.servlet.http.HttpSession; public class LogoutController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { HttpSession session = request.getSession(false); if(session!=null) session.invalidate(); return "redirect:index.jsp"; } }

1. Template

1) WebContent - view - template - sidebar.jsp 에 회원가입 링크 추가

<p><a href="${pageContext.request.contextPath}/DispatcherServlet?command=registerPage">회원가입</a></p>

2. View

1) WebContent - view -  member - register.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <div class="card"> <div class="registerClient"> <h3>회원가입</h3> <form method="post" action="DispatcherServlet"> <input type="hidden" name="command" value="register"> <table> <tr> <td>아이디</td><td><input type="text" name="clientId"></td> </tr> <tr> <td>패스워드</td><td><input type="password" name="clientPassword"></td> </tr> <tr> <td>이름</td><td><input type="text" name="clientName"></td> </tr> <tr> <td>이메일</td><td><input type="email" name="clientEmail"></td> </tr> <tr> <td>휴대폰</td><td><input type="tel" name="clientPhone"></td> </tr> <tr> <td>주소</td><td><input type="text" name="clientAddress"></td> </tr> <tr> <td colspan="2" ><input type="submit" value="등록"></td> </tr> </table> </form> </div> </div>

2) WebContent - view -  member - register_result.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <script> alert("등록이 완료되었습니다."); location.href="http://localhost:8080/webstudy-board/"; </script>

3. Model

1) src - mdoel.ClientDAO에 register 메소드 추가

//1. 회원등록 public void register(ClientDTO clientDTO) throws SQLException{ Connection con=null; PreparedStatement pstmt=null; try { con=getConnection(); String sql="insert into client(clientId, clientPassword, clientName, clientEmail, clientPhone, clientAddress) values(?,?,?,?,?,?)"; pstmt=con.prepareStatement(sql); pstmt.setString(1,clientDTO.getClientId()); pstmt.setString(2,clientDTO.getClientPassword()); pstmt.setString(3,clientDTO.getClientName()); pstmt.setString(4,clientDTO.getClientEmail()); pstmt.setString(5,clientDTO.getClientPhone()); pstmt.setString(6,clientDTO.getClientAddress()); pstmt.execute(); }finally { closeAll(pstmt,con); } }

2) src - test.TestRegister.java (register 메소드를 테스트)

package test; import java.sql.SQLException; import model.ClientDAO; import model.ClientDTO; public class TestRegister { public static void main(String[] args) { ClientDTO newClient=new ClientDTO("test", "test1234", "테스트", "test@test.com", "010-0000-0000", "서울시 종로구"); try { ClientDAO.getInstance().register(newClient); System.out.println("추가완료"); } catch (SQLException e) { e.printStackTrace(); } } }

4. Controller

1) src - controller.HandlerMapping.java에 registerPage와 register command 추가

else if(command.equals("registerPage")) //회원가입 페이지 이동 c=new RegisterPageController(); else if(command.equals("register")) //회원가입 처리 c=new RegisterController();

2) src - controller.RegisterPageController.java 추가

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; public class RegisterPageController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { request.setAttribute("url", "/view/member/register.jsp"); return "/view/template/home.jsp"; } }

3) src - controller.ResgisterController.java 추가

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import model.ClientDAO; import model.ClientDTO; public class RegisterController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { String clientId=request.getParameter("clientId"); String clientPassword=request.getParameter("clientPassword"); String clientName=request.getParameter("clientName"); String clientEmail=request.getParameter("clientEmail"); String clientPhone=request.getParameter("clientPhone"); String clientAddress=request.getParameter("clientAddress"); ClientDAO.getInstance().register(new ClientDTO(clientId, clientPassword, clientName, clientEmail, clientPhone, clientAddress)); return "redirect:view/member/register_result.jsp"; } }

5.CSS

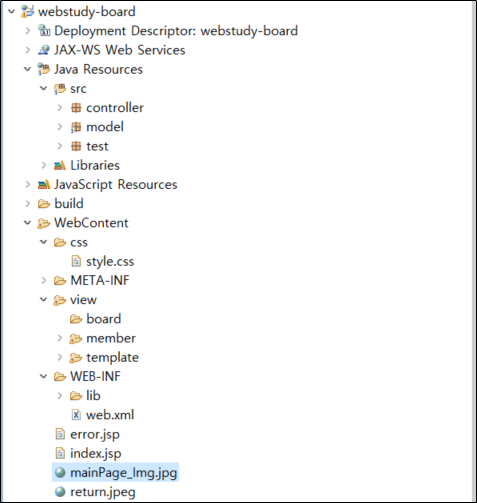

1. webstudy-board 폴더 구조

1. index 페이지와  error 페이지

1) WebContent-index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <jsp:forward page="DispatcherServlet"> <jsp:param name="command" value="mainPage"/> </jsp:forward>

2) WebContent-error.jsp

에러페이지 이동하기

3) WebContent - view - template - home.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>회원관리 & 게시판</title> <link rel="stylesheet" href="${pageContext.request.contextPath}/css/style.css"> </head> <body> <div class="header"> <c:import url="/view/template/header.jsp"></c:import> </div> <div class="row"> <div class="leftcolumn"> <c:import url="/view/template/sidebar.jsp"></c:import> </div> <div class="rightcolumn"> <c:import url="${url}"></c:import> </div> </div> <div class="footer"> <c:import url="/view/template/footer.jsp"></c:import> </div> </body> </html>

4) WebContent - view - template - header.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <h1>게시판 테스트</h1> <p>게시판 테스트 중입니다. 나중에 페이징빈도 할 것 입니다.</p>

5) WebContent - view - template - sidebar.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <!-- 회원 --> <div class="card"> 회원부분 </div> <!-- 메뉴부분 --> <div class="card"> 메뉴부분 </div>

6) WebContent - view - template - footer.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <h2>푸터임</h2>

7) WebContent - view - template - mainPage.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %> <div class="card"> <img src="./mainPage_Img.jpg"/> </div>

- mainPage 이미지

2. Controller

1) src - controller.HandlerMapping.java

package controller; public class HandlerMapping { private static HandlerMapping instance=new HandlerMapping(); private HandlerMapping() {} public static HandlerMapping getInstance() { return instance; } public Controller create(String command) { Controller c=null; //메인 if(command.equals("mainPage")) c=new MainPageController(); //회원관리 //게시판 return c; } }

2) src - controller.MainPageController.java

package controller; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; public class MainPageController implements Controller { @Override public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception { request.setAttribute("url", "/view/template/mainPage.jsp"); return "/view/template/home.jsp"; } }

3.CSS

1) WebContent - css - style.css

** 표현 언어(EL:Expression Language) **
- 데이터를 웹 페이지에 표시하는데 사용하는 태그
- JSP 출력에 대한 부분을 쉽게 하기 위해 개발한 태그
- 등장배경 : 자바코드로 내장 객체(request, session 등)에 저장된 속성 값에 접근하면 코드가 길어지고 지저분해짐
ex) ${ expr }

* 요청 파마리터 처리
request.getParamter()--->param 객체
- param : request.getParameter()와 동일한 역할로, 파라미터 값을 알려준다
- paramValues : request.getParamterValues()와 동일한 역할로, 동일한 이름으로 전달되는 파라미터 값들(라디오버튼, 체크박스 등)을 배열형태로 얻어온다.

ex)
request.getParameter("id") ---> ${param.id}
request.getParameter("pw") ---> ${param.pw}


* 내장객체 접근
- pageScope : 내장객체 pageContext
- requestScope : 내장객체 request
- sessionScope : 내장객체 session
- applicationScope : 내장객체 application




** JSTL (JSP Standard Tag Library) **

- JSP 표준 태크 라이브러리
- 일관성 없던 커스텀 태그(JSP를 작성할 때 자주 사용되는 자바 코드를 웹에서 사용할 수 있는 태크 형태로 만드는 기술)들을 표준화 한 것

* 태그 라이브러리 사용하기
- JSTL 제공 기능 중 core를 사용하기 위한 taglib
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
- uri : 사용할 태그 라이브러리 식별자
- prefix : 태그에서 사용할 접두어

* JSTL core 태그

1. 공통

1) WebContent - WEB-INF - web.xml

2) WebContent - Home.html

2. Review

1) WebContent - step1.html

2) src - ReviewServlet.java

3. LifeCycleServlet

1) src - LifeCycleServlet.java.java

4. TestListener

1) WebContent - step2.jsp

2) src - step4.OneServlet.java

3) src - step4.TwoServlet.java.java

4) src - step5.TestListener.java

1. 공통 영역

1) WebContent - WEB-INF - web.xml

<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee <a href="http://xmlns.jcp.org">http://xmlns.jcp.org</a>/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1"> <display-name>webstudy1-servlet-basic</display-name> <welcome-file-list> <welcome-file>home.html</welcome-file> </welcome-file-list> <servlet> <servlet-name>HelloServlet</servlet-name> <servlet-class>step1.HelloServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>HelloServlet</servlet-name> <url-pattern>/hello</url-pattern> </servlet-mapping> </web-app>

2) WebContent - Home.html

<!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>Start Servlet</title> </head> <body> Start Servlet!! <a href="http://localhost:8080/webstudy1-servlet-basic/step1.html">step1.HelloServlet</a> <a href="http://localhost:8080/webstudy1-servlet-basic/step2.html">step2.PostServlet</a> <a href="http://localhost:8080/webstudy1-servlet-basic/step3.html">step3.RequestTestServlet</a> </body> </html>

2. HelloServlet

1) WebContent - step1.html

<!DOCTYPE html> <html> <head> <meta charset="UTF-8"> <title>step1.HelloServlet</title> </head> <body> #. 서블릿의기본 연습(get방식) <form action="hello" method="get"> 음식명 <input type="text" name="menu"> <input type="submit" value="get요청"> </form> <hr> <form action="hello" method="post"> <input type="submit" value="post요청"> </form> <a href="http://localhost:8080/webstudy1-servlet-basic/">홈으로</a> </body> </html>

2) src - HelloServlet.java

package step1; import java.io.IOException; import java.io.PrintWriter; import javax.servlet.ServletException; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; public class HelloServlet extends HttpServlet { private static final long serialVersionUID = 1L; @Override protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { System.out.print("HelloServlet doGet()"); //응답시 전송할 컨텐츠 정보 할당 response.setContentType("text/html;charset=utf-8"); PrintWriter out=response.getWriter(); out.println("<html>"); out.println("<body bgcolor=blue>"); out.println("HelloServlet 시작 서블릿!"); out.println("메뉴명은"+request.getParameter("menu")); out.println("<a href=http://localhost:8080/webstudy1-servlet-basic/step1.html>step1</a>"); out.println("</body>"); out.println("</html>"); out.close(); } }

3. PostServlet

1) WebContent - Step2.html

2) src - PostServlet.java

4. RequestTestServlet

1) WebContent - Step3.html

2) src - RequestTestServlet.java
