1. Template

1) WebContent - view - template - sidebar.jsp 수정

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:choose>
    <c:when test="${sessionScope.clientDTO==null}">
    <!-- 로그인 부분 -->
        <div class="card">
            <h3>로그인</h3>
            <form method="post" action="${pageContext.request.contextPath}/DispatcherServlet">
                <input type="hidden" name="command" value="login">
                <p>아이디 <input type="text" name="clientId" placeholder="아이디" size="12"></p>
                <p>패스워드 <input type="password" name="clientPassword" placeholder="비밀번호" size="12"></p>
                <input type="submit" value="로그인">
                <a href="${pageContext.request.contextPath}/DispatcherServlet?command=registerPage">회원가입</a></p>
            </form>
        </div>
    </c:when>
    <c:otherwise>
        <div class="card">
            <p>${sessionScope.clientDTO.clientName}님    반갑습니다.</p>
            <p><a href="${pageContext.request.contextPath}/DispatcherServlet?command=logout">로그아웃</a></p>
            <p><a href="#">회원수정</a></p>
            <p><a href="#">회원탈퇴</a></p>
            <p><a href="${pageContext.request.contextPath}/index.jsp">홈으로</a>  </p>
        </div>
        <!-- 메뉴부분 -->
        <div class="card">
            <h3>게시판</h3>
            <a href="#">게시판 보기</a>
        </div>
    </c:otherwise>
</c:choose>

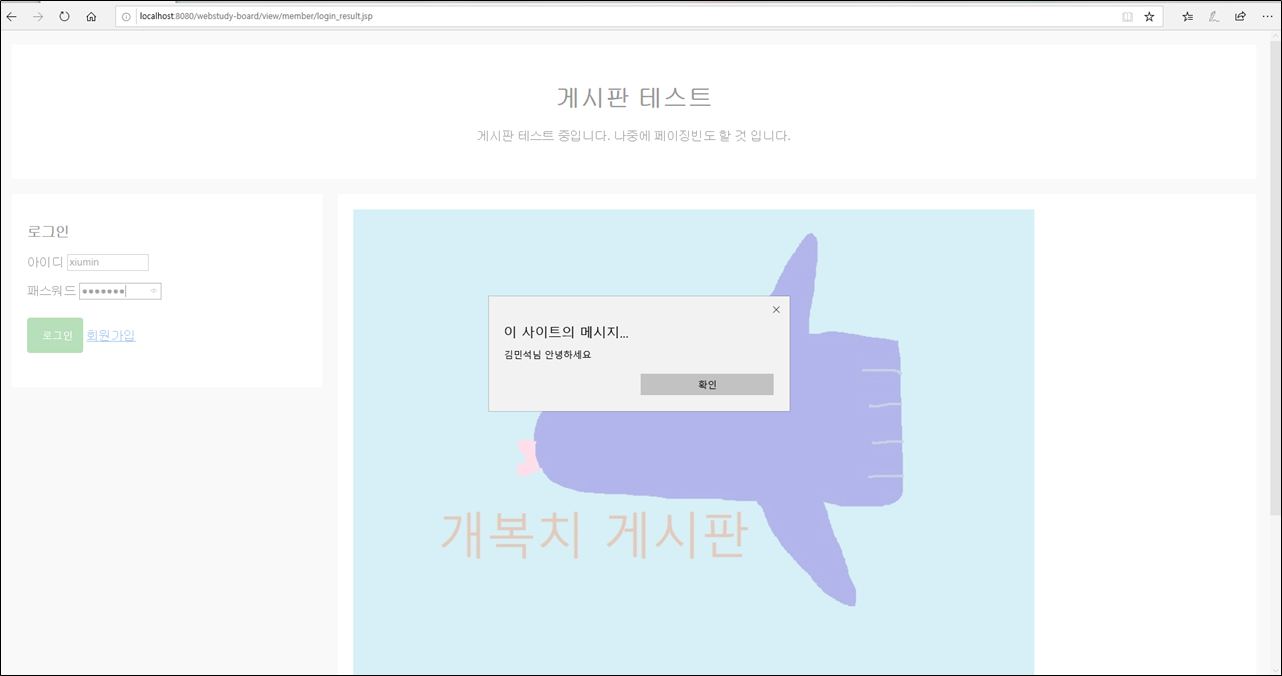

2. View

1) WebContent - view - member - login_result.jsp 추가

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<!-- 로그인 실패 : 세션 없음 -->
<c:if test="${sessionScope.clientDTO==null}">
    <script lang="javascript">
        alert('아이디가 없거나 패스워드가 맞지 않아 로그인에 실패하셨습니다.');
        location.href='http://localhost:8080/webstudy-board/';
    </script>
</c:if>
<!-- 로그인 성공 : 세션 있음 -->
<c:if test="${sessionScope.clientDTO!=null}">
    <script lang="javascript">
        var name='${sessionScope.clientDTO.clientName}';
        alert(name+'님 안녕하세요');
        location.href='http://localhost:8080/webstudy-board/';
    </script>
</c:if>



3. Model

1) src - model.ClientDAO.java에 login 로그인 메소드 추가

?
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
public ClientDTO login(ClientDTO clientDTO) throws SQLException {
    ClientDTO resultDTO=null;
    Connection con=null;
    PreparedStatement pstmt=null;
    ResultSet rs=null;
    try {
        con=getConnection();
        String sql="select clientId,clientName from client where clientId=? and clientPassword=?";
        pstmt=con.prepareStatement(sql);
        pstmt.setString(1, clientDTO.getClientId());
        pstmt.setString(2, clientDTO.getClientPassword());
        rs=pstmt.executeQuery();
        if(rs.next())
            resultDTO=new ClientDTO(rs.getString(1), null, rs.getString(2), null, null, null);
    }finally {
        closeAll(rs, pstmt, con);
    }
    return resultDTO;
}

2) src - test.TestLogin.java 추가(login 메소드 테스트)

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
package test;

import model.ClientDAO;
import model.ClientDTO;

public class TestLogin {
    public static void main(String[] args) {
        String clientId="xiumin";
        String clientPassword="exo1234";
        try {
            ClientDTO clientDTO=ClientDAO.getInstance().login(new ClientDTO(clientId,clientPassword,null,null,null,null));
            System.out.println(clientDTO);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}



4. Controller

1) src - controller.HandlerMapping.java에 login, logout command 추가;

?
1
2
3
4
else if(command.equals("login"))    //로그인
    c=new LoginController();
else if(command.equals("logout"))   //로그아웃
    c=new LogoutController();

2) src - controller.LoginController.java 추가

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

import model.ClientDAO;
import model.ClientDTO;

public class LoginController implements Controller {
    @Override
    public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception {
        String clientId=request.getParameter("clientId");
        String clientPassword=request.getParameter("clientPassword");
        ClientDTO clientDTO=ClientDAO.getInstance().login(new ClientDTO(clientId,clientPassword,null,null,null,null));
        HttpSession session=request.getSession();
        session.setAttribute("clientDTO", clientDTO);
        return "redirect:view/member/login_result.jsp";
    }
}

3) src - controller.LogoutController.java 추가

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
package controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

public class LogoutController implements Controller {
    @Override
    public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpSession session = request.getSession(false);
        if(session!=null)
            session.invalidate();
        return "redirect:index.jsp";
    }
}



'1.JAVA Web Programming > [4주차] 게시판 만들기' 카테고리의 다른 글

게시판 - webstudy-board - 회원탈퇴  (0) 2019.08.11
게시판 - webstudy-board - 회원수정  (0) 2019.08.11
게시판 - webstudy-board - 회원가입  (0) 2019.08.11
게시판 - webstudy-board - Index 페이지  (0) 2019.08.11
게시판 - webstudy-board - EL, JSTL  (0) 2019.08.07

1. Template

1) WebContent - view - template - sidebar.jsp 에 회원가입 링크 추가

?
6
<p><a href="${pageContext.request.contextPath}/DispatcherServlet?command=registerPage">회원가입</a></p>



2. View

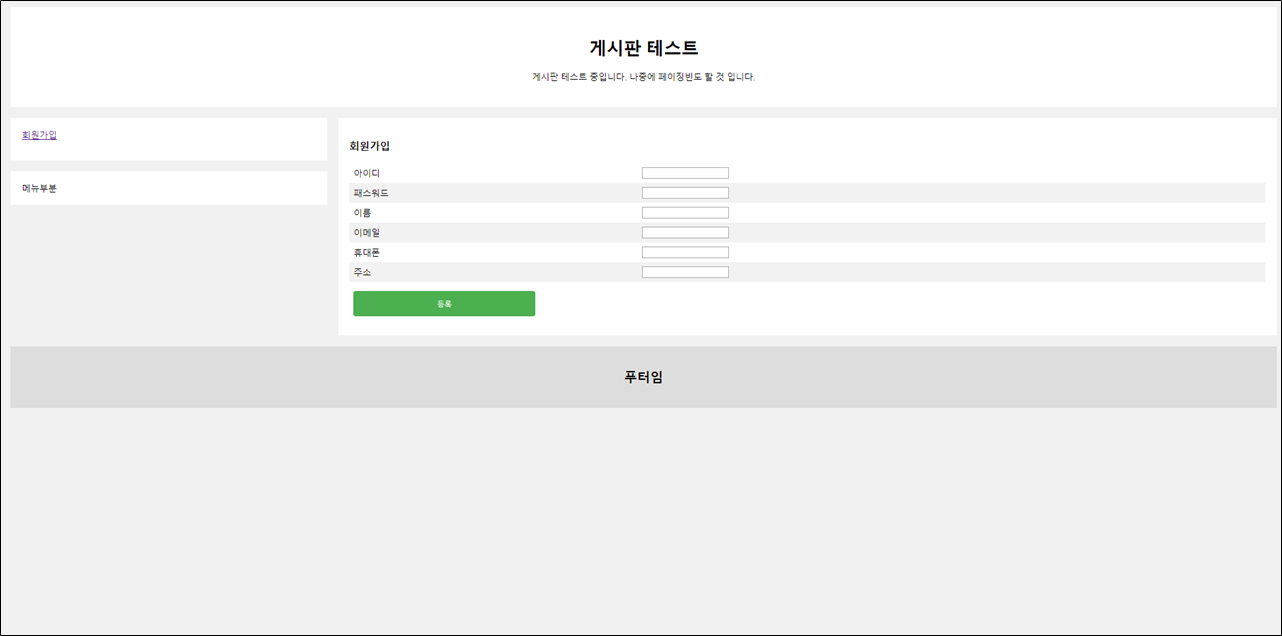

1) WebContent - view -  member - register.jsp

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<div class="card">
    <div class="registerClient">
        <h3>회원가입</h3>
        <form method="post" action="DispatcherServlet">
            <input type="hidden" name="command" value="register">
            <table>
                <tr>
                    <td>아이디</td><td><input type="text" name="clientId"></td>
                </tr>
                <tr>
                    <td>패스워드</td><td><input type="password" name="clientPassword"></td>
                </tr>
                <tr>
                    <td>이름</td><td><input type="text" name="clientName"></td>
                </tr>
                <tr>
                    <td>이메일</td><td><input type="email" name="clientEmail"></td>
                </tr>
                <tr>
                    <td>휴대폰</td><td><input type="tel" name="clientPhone"></td>
                </tr>
                <tr>
                    <td>주소</td><td><input type="text" name="clientAddress"></td>
                </tr>
                <tr>
                    <td colspan="2" ><input type="submit" value="등록"></td>
                </tr>
            </table>
        </form>
    </div>
</div>

2) WebContent - view -  member - register_result.jsp

?
1
2
3
4
5
6
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<script>
  alert("등록이 완료되었습니다.");
  location.href="http://localhost:8080/webstudy-board/";
</script>



3. Model

1) src - mdoel.ClientDAO에 register 메소드 추가

?
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
//1. 회원등록
public void register(ClientDTO clientDTO) throws SQLException{
    Connection con=null;
    PreparedStatement pstmt=null;
    try {
        con=getConnection();
        String sql="insert into client(clientId, clientPassword, clientName, clientEmail, clientPhone, clientAddress) values(?,?,?,?,?,?)";
        pstmt=con.prepareStatement(sql);
        pstmt.setString(1,clientDTO.getClientId());
        pstmt.setString(2,clientDTO.getClientPassword());
        pstmt.setString(3,clientDTO.getClientName());
        pstmt.setString(4,clientDTO.getClientEmail());
        pstmt.setString(5,clientDTO.getClientPhone());
        pstmt.setString(6,clientDTO.getClientAddress());
        pstmt.execute();
    }finally {
        closeAll(pstmt,con);
    }
}

2) src - test.TestRegister.java (register 메소드를 테스트)

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
package test;

import java.sql.SQLException;

import model.ClientDAO;
import model.ClientDTO;

public class TestRegister {
    public static void main(String[] args) {
        ClientDTO newClient=new ClientDTO("test", "test1234", "테스트", "test@test.com", "010-0000-0000", "서울시 종로구");
        try {
            ClientDAO.getInstance().register(newClient);
            System.out.println("추가완료");
        } catch (SQLException e) {
            e.printStackTrace();
        }
    }
}



4. Controller

1) src - controller.HandlerMapping.java에 registerPage와 register command 추가

?
15
16
17
18
else if(command.equals("registerPage")) //회원가입 페이지 이동
    c=new RegisterPageController();
else if(command.equals("register")) //회원가입 처리
    c=new RegisterController();

2) src - controller.RegisterPageController.java 추가

?
1
2
3
4
5
6
7
8
9
10
11
12
package controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class RegisterPageController implements Controller {
    @Override
    public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception {
        request.setAttribute("url", "/view/member/register.jsp");
        return "/view/template/home.jsp";
    }
}

3) src - controller.ResgisterController.java 추가

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import model.ClientDAO;
import model.ClientDTO;

public class RegisterController implements Controller {
    @Override
    public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception {
        String clientId=request.getParameter("clientId");
        String clientPassword=request.getParameter("clientPassword");
        String clientName=request.getParameter("clientName");
        String clientEmail=request.getParameter("clientEmail");
        String clientPhone=request.getParameter("clientPhone");
        String clientAddress=request.getParameter("clientAddress");
        ClientDAO.getInstance().register(new ClientDTO(clientId, clientPassword, clientName, clientEmail, clientPhone, clientAddress));
        return "redirect:view/member/register_result.jsp";
    }
}



5.CSS

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
table {
  border-collapse: collapse;
  width: 100%;
}

th, td {
  text-align: left;
  padding: 8px;
}

 tr:nth-child(even) {background-color: #f2f2f2;}
 input[type=submit] {
  width: 20%;
  background-color: #4CAF50;
  color: white;
  padding: 14px 20px;
  margin: 8px 0;
  border: none;
  border-radius: 4px;
  cursor: pointer;

}

 input[type=submit]:hover {
  background-color: #45a049;
}

'1.JAVA Web Programming > [4주차] 게시판 만들기' 카테고리의 다른 글

게시판 - webstudy-board - 회원수정  (0) 2019.08.11
게시판 - webstudy-board - 로그인/로그아웃  (0) 2019.08.11
게시판 - webstudy-board - Index 페이지  (0) 2019.08.11
게시판 - webstudy-board - EL, JSTL  (0) 2019.08.07
게시판 - webstudy-board - controller,model  (0) 2019.08.05

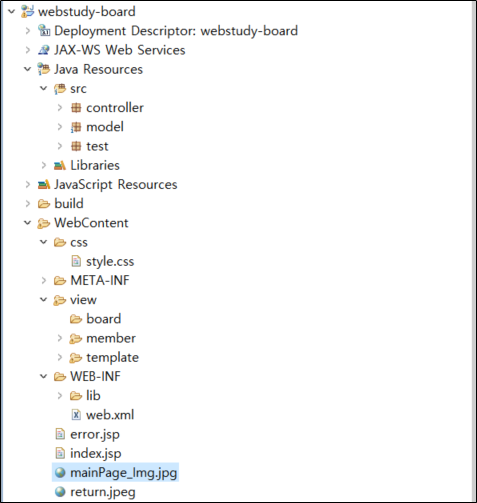

1. webstudy-board 폴더 구조

1. index 페이지와  error 페이지

1) WebContent-index.jsp

?
1
2
3
4
5
6
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<jsp:forward page="DispatcherServlet">
    <jsp:param name="command" value="mainPage"/>
</jsp:forward>

2) WebContent-error.jsp

에러페이지 이동하기

3) WebContent - view - template - home.jsp

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>회원관리 & 게시판</title>
<link rel="stylesheet" href="${pageContext.request.contextPath}/css/style.css">
</head>
<body>
    <div class="header">
        <c:import url="/view/template/header.jsp"></c:import>
    </div>
    <div class="row">
        <div class="leftcolumn">
            <c:import url="/view/template/sidebar.jsp"></c:import>
        </div>
        <div class="rightcolumn">
            <c:import url="${url}"></c:import>
        </div>
    </div>
    <div class="footer">
        <c:import url="/view/template/footer.jsp"></c:import>
    </div>
</body>
</html>

4) WebContent - view - template - header.jsp

?
1
2
3
4
5
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
  <h1>게시판 테스트</h1>
  <p>게시판 테스트 중입니다. 나중에 페이징빈도 할 것 입니다.</p>

5) WebContent - view - template - sidebar.jsp

?
1
2
3
4
5
6
7
8
9
10
11
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!-- 회원 -->
<div class="card">
회원부분
</div>
<!-- 메뉴부분 -->
<div class="card">
메뉴부분
</div>

6) WebContent - view - template - footer.jsp

?
1
2
3
4
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
  <h2>푸터임</h2>

7) WebContent - view - template - mainPage.jsp

?
1
2
3
4
5
6
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<div class="card">
    <img src="./mainPage_Img.jpg"/>
</div>

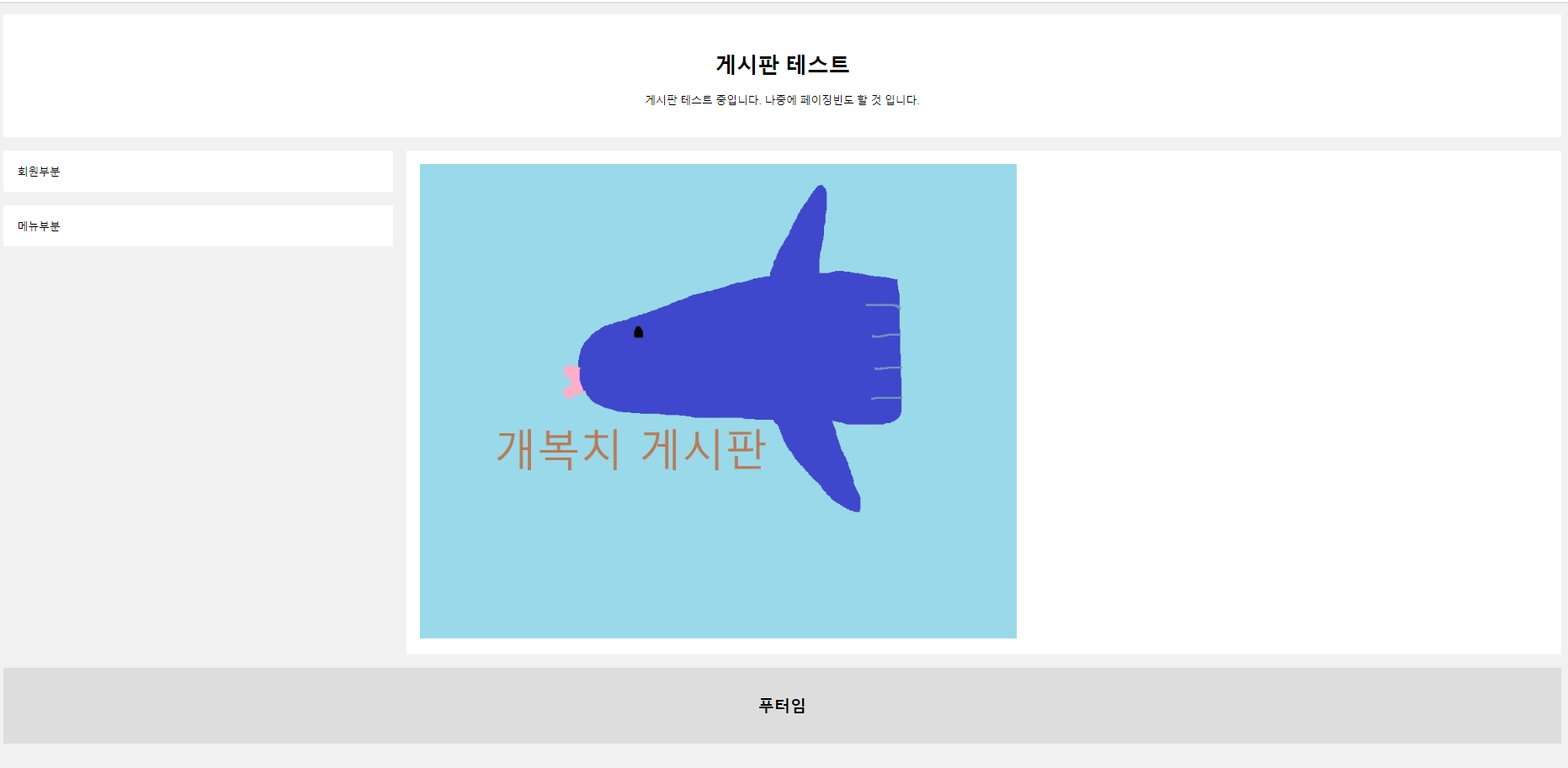

- mainPage 이미지

2. Controller

1) src - controller.HandlerMapping.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
package controller;

public class HandlerMapping {
    private static HandlerMapping instance=new HandlerMapping();
    private HandlerMapping() {}
    public static HandlerMapping getInstance() {
        return instance;
    }
    public Controller create(String command) {
        Controller c=null;
        //메인
        if(command.equals("mainPage"))
            c=new MainPageController();
        //회원관리
        //게시판
        return c;
    }
}

2) src - controller.MainPageController.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
package controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class MainPageController implements Controller {

    @Override
    public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception {
        request.setAttribute("url", "/view/template/mainPage.jsp");
        return "/view/template/home.jsp";

    }
}



3.CSS

1) WebContent - css - style.css

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
@charset "UTF-8";
* {
  box-sizing: border-box;
}

body {
  font-family: Arial;
  padding: 10px;
  background: #f1f1f1;
}
.header {
  padding: 30px;
  text-align: center;
  background: white;
}
.main{
    height:60px;
    width: 100%;
    background-color: green;
    float: left;
}
.leftcolumn {
  float: left;
  width: 25%;
}
.rightcolumn {
  float: left;
  width: 75%;
  background-color: #f1f1f1;
  padding-left: 20px;
}
.card {
  background-color: white;
  padding: 20px;
  margin-top: 20px;
}
.row:after {
  content: "";
  display: table;
  clear: both;
}

.footer {
  padding: 20px;
  text-align: center;
  background: #ddd;
  margin-top: 20px;
}

'1.JAVA Web Programming > [4주차] 게시판 만들기' 카테고리의 다른 글

게시판 - webstudy-board - 로그인/로그아웃  (0) 2019.08.11
게시판 - webstudy-board - 회원가입  (0) 2019.08.11
게시판 - webstudy-board - EL, JSTL  (0) 2019.08.07
게시판 - webstudy-board - controller,model  (0) 2019.08.05
게시판 - webstudy-board - board table 생성  (1) 2019.08.04

** 표현 언어(EL:Expression Language) **
- 데이터를 웹 페이지에 표시하는데 사용하는 태그
- JSP 출력에 대한 부분을 쉽게 하기 위해 개발한 태그
- 등장배경 : 자바코드로 내장 객체(request, session 등)에 저장된 속성 값에 접근하면 코드가 길어지고 지저분해짐
ex) ${ expr }

* 요청 파마리터 처리
request.getParamter()--->param 객체
- param : request.getParameter()와 동일한 역할로, 파라미터 값을 알려준다
- paramValues : request.getParamterValues()와 동일한 역할로, 동일한 이름으로 전달되는 파라미터 값들(라디오버튼, 체크박스 등)을 배열형태로 얻어온다.

ex)
request.getParameter("id") ---> ${param.id}
request.getParameter("pw") ---> ${param.pw}


* 내장객체 접근
- pageScope : 내장객체 pageContext
- requestScope : 내장객체 request
- sessionScope : 내장객체 session
- applicationScope : 내장객체 application




** JSTL (JSP Standard Tag Library) **

- JSP 표준 태크 라이브러리
- 일관성 없던 커스텀 태그(JSP를 작성할 때 자주 사용되는 자바 코드를 웹에서 사용할 수 있는 태크 형태로 만드는 기술)들을 표준화 한 것


* 태그 라이브러리 사용하기
- JSTL 제공 기능 중 core를 사용하기 위한 taglib
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
- uri : 사용할 태그 라이브러리 식별자
- prefix : 태그에서 사용할 접두어

* JSTL core 태그

태그 설명 기본형식
<c:set> 변수에 값을 설정

<c:set var="변수이름" value="저장할 값" [scope="{page|request|session|application}]>

*scope 속성 기본값 : page
<c:remove> 변수에 설정된 값을 제거 <c:remove var="변수 이름" [scope="{page|request|session|application}]>
<c:if> 조건에 따라 처리를 달리 할 때 사용

<c:if test="조건식>

   조건이 참일 경우 실행할 문장

</c:if>
<c:choose> 여러 조건에 따라 처리를 달리 할 때 사용

<c:choose>

 <c:when test="조건1"> 실행 값</c:when>

 <c:when test="조건2"> 실행 값</c:when>

 <c:otherwise> 실행 값</c:when>

</c:choose>
<c:forEach>

구분자로 구분된 각각의 토큰을 처리할 때 사용

집합체에 저장되어 있는 값들을 순차적으로 처리할 떄 사용할 수 있는 태그

<c:forEach [var="변수 이름"] items="배열과 같은 집합체" [varStatus="반복상태정보를 위한 변수"]>

 실행 값

</c:forEach>



* varStatus 속성 : 반복 상태에 관련된 정보를 알려줌

- index : 현재 반복중인 항목의 index 알려줌

- count : 현재 몇 번째를 반복 중인지 알려줌

- first : 현재 루프가 처음인지 여부

- last  : 현재 루프가 마지막인지 여부

- begin : 반복에 사용 될 것 중 첫번째 항목의 index

- end : 반복에 사용될 것 중 마지막 항목의 index
<c:forTokens> 구분자로 분리된 각각의 토큰을 처리할 때 사용

<c:forTokens var="토큰을 저장할 변수" items="토큰으로 나눌 문자열" delims="구분자">

 실행 값

</c:forTokens>
<c:import> 외부의 자원을 URL을 지정하여 가져다 사용

<c:import url="URL" [var="변수 이름"] [scope="영역"] [charEncoding="charEncoding"]><c:import>
<c:redirect> 지정된 경로로 이동 <c:redirect url="URL" [context="경로명"]>
<c:url> url 재작성 <c:url value="URL" [var="변수 이름"] [scope="영역"]></c:url>
<c:out> 데이터를 출력할 때 사용하는 태그, <%= %>대체 <c:out value="value" [default="기본값"]>
<c:catch> 예외처리

<c:catch var="변수 이름">

예외가 발생할 수 있는 코드

</c:catch>



'1.JAVA Web Programming > [4주차] 게시판 만들기' 카테고리의 다른 글

게시판 - webstudy-board - 회원가입  (0) 2019.08.11
게시판 - webstudy-board - Index 페이지  (0) 2019.08.11
게시판 - webstudy-board - controller,model  (0) 2019.08.05
게시판 - webstudy-board - board table 생성  (1) 2019.08.04
게시판 - webstudy-board - 기능명세서  (0) 2019.08.04

1. 공통

1) WebContent - WEB-INF - web.xml

?
1
내용은 여기에

2) WebContent - Home.html

?
1
내용은 여기에



2. Review

1) WebContent - step1.html

?
1
내용은 여기에

2) src - ReviewServlet.java

?
1
내용은 여기에



3. LifeCycleServlet

1) src - LifeCycleServlet.java.java

?
1
내용은 여기에



4. TestListener

1) WebContent - step2.jsp

?
1
내용은 여기에

2) src - step4.OneServlet.java

?
1
내용은 여기에

3) src - step4.TwoServlet.java.java

?
1
내용은 여기에

4) src - step5.TestListener.java

?
1
내용은 여기에

'1.JAVA Web Programming > [1주차] Servlet-Basic' 카테고리의 다른 글

Servlet Basic - Servlet Basic  (0) 2019.08.06
Servlet Basic - Servlet 내용정리  (0) 2019.08.06
Servlet Basic - Web basic  (0) 2019.08.03

1. 공통 영역

1) WebContent - WEB-INF - web.xml

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee <a href="http://xmlns.jcp.org">http://xmlns.jcp.org</a>/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1">
  <display-name>webstudy1-servlet-basic</display-name>
  <welcome-file-list>
    <welcome-file>home.html</welcome-file>
  </welcome-file-list>
  <servlet>
    <servlet-name>HelloServlet</servlet-name>
    <servlet-class>step1.HelloServlet</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>HelloServlet</servlet-name>
    <url-pattern>/hello</url-pattern>
  </servlet-mapping>
</web-app>

2) WebContent - Home.html

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Start Servlet</title>
</head>
<body>
Start Servlet!!

<a href="http://localhost:8080/webstudy1-servlet-basic/step1.html">step1.HelloServlet</a>

<a href="http://localhost:8080/webstudy1-servlet-basic/step2.html">step2.PostServlet</a>

<a href="http://localhost:8080/webstudy1-servlet-basic/step3.html">step3.RequestTestServlet</a>

</body>
</html>



2. HelloServlet

1) WebContent - step1.html

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>step1.HelloServlet</title>
</head>
<body>
#. 서블릿의기본 연습(get방식)
<form action="hello" method="get">
음식명 <input type="text" name="menu">
<input type="submit" value="get요청">
</form>
<hr>
<form action="hello" method="post">
<input type="submit" value="post요청">
</form>
<a href="http://localhost:8080/webstudy1-servlet-basic/">홈으로</a>
</body>
</html>

2) src - HelloServlet.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
package step1;

import java.io.IOException;
import java.io.PrintWriter;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;


public class HelloServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;
    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response)
      throws ServletException, IOException {
        System.out.print("HelloServlet doGet()");
        //응답시 전송할 컨텐츠 정보 할당
        response.setContentType("text/html;charset=utf-8");
        PrintWriter out=response.getWriter();
        out.println("<html>");
        out.println("<body bgcolor=blue>");
        out.println("HelloServlet 시작 서블릿!");
        out.println("메뉴명은"+request.getParameter("menu"));
        out.println("<a href=http://localhost:8080/webstudy1-servlet-basic/step1.html>step1</a>");
        out.println("</body>");
        out.println("</html>");
        out.close();
        }
}



3. PostServlet

1) WebContent - Step2.html

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>step2.PostServlet</title>
</head>
<body>
#. http post 방식 요청 연습
 <form action="PostServlet" method="post">
         닉네임 <input type="text" name="nickName">
         <input type="submit" value="전송">
 </form>
 <a href="http://localhost:8080/webstudy1-servlet-basic/">홈으로</a>
</body>
</html>

2) src - PostServlet.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
package step2;

import java.io.IOException;
import java.io.PrintWriter;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/*
 * web.xml에서 기술했던 url-pattern역할을 @WebServlet 어노테이션으로 기술
 */
@WebServlet("/PostServlet")
public class PostServlet extends HttpServlet {
private static final long serialVersionUID = 1L;
    public PostServlet() {
        super();
    }
    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            //post 방식일 때는 request 요청 파라미터를 인코딩 해야함
            request.setCharacterEncoding("utf-8");
            response.setContentType("text/html;charset=utf-8");
            PrintWriter out=response.getWriter();
            out.println("PostServlet doPost");
            String nickName=request.getParameter("nickName");
            out.println("당신의 닉네임은 : "+nickName );
            out.println("<a href=http://localhost:8080/webstudy1-servlet-basic/step2.html>step2</a>");
            out.close();
   }
}

4. RequestTestServlet

1) WebContent - Step3.html

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>step3.RequestTestServlet</title>
</head>
<body>
<!--
아래와 같은 링크는 get방식 요청,
링크를 클릭했을 때 정보를 전달하고 싶다면 query string 방식으로 전달
 -->
 <a href="requestTest?id=angel&name=조민경">RequestTestServlet</a>


 <hr>
 <!--
         form에서 별도의 method 즉, 요청방식이 명시되어 있지 않으면 get방식 요청
  -->
  <form action="requestTest">
  아이디 <input type="text" name="id">
  이름 <input type="text" name="name">
  <input type="submit" value="전송">
  </form>
  <a href="http://localhost:8080/webstudy1-servlet-basic/">홈으로</a>
</body>
</html>

2) src - RequestTestServlet.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
package step3;

import java.io.IOException;
import java.io.PrintWriter;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * Servlet implementation class RequestTestServlet
 */
@WebServlet("/requestTest")
public class RequestTestServlet extends HttpServlet {
private static final long serialVersionUID = 1L;
    public RequestTestServlet() {
        super();
    }
    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        response.setContentType("text/html;charset=utf-8");
        PrintWriter out=response.getWriter();
        String id=request.getParameter("id");
        String name=request.getParameter("name");
        out.println("RequestTestServlet doGet() 응답");
        out.println("아이디 "+id+"");
        out.println("이름 "+name+"");
        out.println("<a href=http://localhost:8080/webstudy1-servlet-basic/step3.html>step3</a>");
        out.close();
    }
}

'1.JAVA Web Programming > [1주차] Servlet-Basic' 카테고리의 다른 글

Servlet Basic - Servlet LifeCycle  (0) 2019.08.06
Servlet Basic - Servlet 내용정리  (0) 2019.08.06
Servlet Basic - Web basic  (0) 2019.08.03

'1.JAVA Web Programming > [1주차] Servlet-Basic' 카테고리의 다른 글

Servlet Basic - Servlet LifeCycle  (0) 2019.08.06
Servlet Basic - Servlet Basic  (0) 2019.08.06
Servlet Basic - Web basic  (0) 2019.08.03

1. model

1) src - model.DataSource.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
package model;

import javax.sql.DataSource;

import org.apache.tomcat.dbcp.dbcp2.BasicDataSource;
/*
 * javax.sql.DataSource Interface는 다양한 DBCP 구현체를 표준화 하는 인터페이스
 * DataSource Interface 타입으로 DAO에서 사용하면 DBCP 구현체가 변경되도 별도 코드 수정 필요 없음
 */
public class DataSourceManager {
    private static DataSourceManager instance=new DataSourceManager();
    private DataSource dataSource;
    private DataSourceManager() {
        BasicDataSource dbcp=new BasicDataSource();
        dbcp.setDriverClassName("org.mariadb.jdbc.Driver");
        dbcp.setUrl("jdbc:mysql://localhost:3306/study_db");
        dbcp.setUsername("study_user");
        dbcp.setPassword("user");
        //동시에 사용될 수 있는 커넥션 수 설정, 기본은 8
        dbcp.setMaxTotal(20);
        dataSource=dbcp;
    }
    public static DataSourceManager getInstance() {
        return instance;
    }
    public DataSource getDataSource() {
        return dataSource;
    }
}

2) src - model.ClientDTO

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
package model;

public class ClientDTO {
    private String clientId;
    private String clientPassword;
    private String clientName;
    private String clientEmail;
    private String clientPhone;
    private String clientAddress;
    public ClientDTO(String clientId, String clientPassword, String clientName, String clientEmail, String clientPhone,
            String clientAddress) {
        super();
        this.clientId = clientId;
        this.clientPassword = clientPassword;
        this.clientName = clientName;
        this.clientEmail = clientEmail;
        this.clientPhone = clientPhone;
        this.clientAddress = clientAddress;
    }
    public ClientDTO() {
        super();
    }
    public String getClientId() {
        return clientId;
    }
    public void setClientId(String clientId) {
        this.clientId = clientId;
    }
    public String getClientPassword() {
        return clientPassword;
    }
    public void setClientPassword(String clientPassword) {
        this.clientPassword = clientPassword;
    }
    public String getClientName() {
        return clientName;
    }
    public void setClientName(String clientName) {
        this.clientName = clientName;
    }
    public String getClientEmail() {
        return clientEmail;
    }
    public void setClientEmail(String clientEmail) {
        this.clientEmail = clientEmail;
    }
    public String getClientPhone() {
        return clientPhone;
    }
    public void setClientPhone(String clientPhone) {
        this.clientPhone = clientPhone;
    }
    public String getClientAddress() {
        return clientAddress;
    }
    public void setClientAddress(String clientAddress) {
        this.clientAddress = clientAddress;
    }
    @Override
    public String toString() {
        return "ClientDTO [clientId=" + clientId + ", clientPassword=" + clientPassword + ", clientName=" + clientName
                + ", clientEmail=" + clientEmail + ", clientPhone=" + clientPhone + ", clientAddress=" + clientAddress
                + "]";
    }
}

3) src - model.ClientDAO

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
package model;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;

public class ClientDAO {
    private static ClientDAO instance=new ClientDAO();
    private ClientDAO() {}
    public static ClientDAO getInstance() {
        return instance;
    }
    public Connection getConnection() throws SQLException{
        return DriverManager.getConnection("jdbc:mysql://localhost:3306/study_db","study_user","user");
    }
    public void closeAll(PreparedStatement pstmt,Connection con) throws SQLException{
        if(pstmt!=null)
            pstmt.close();
        if(con!=null)
            con.close();
    }
    public void closeAll(ResultSet rs,PreparedStatement pstmt,Connection con) throws SQLException{
        if(rs!=null)
            rs.close();
        closeAll(pstmt, con);
    }
    //메소드 추가
}

4)src - model.BoardDTO

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
package model;

public class BoardDTO {
    private int boardNo;
    private String boardTitle;
    private String boardContent;
    private String clientId;
    private String boardDate;
    private int boardCount;

    public BoardDTO() {
        super();
    }
    public BoardDTO(int boardNo, String boardTitle, String boardContent, String clientId, String boardDate,
            int boardCount) {
        super();
        this.boardNo = boardNo;
        this.boardTitle = boardTitle;
        this.boardContent = boardContent;
        this.clientId = clientId;
        this.boardDate = boardDate;
        this.boardCount = boardCount;
    }
    public int getBoardNo() {
        return boardNo;
    }
    public void setBoardNo(int boardNo) {
        this.boardNo = boardNo;
    }
    public String getBoardTitle() {
        return boardTitle;
    }
    public void setBoardTitle(String boardTitle) {
        this.boardTitle = boardTitle;
    }
    public String getBoardContent() {
        return boardContent;
    }
    public void setBoardContent(String boardContent) {
        this.boardContent = boardContent;
    }
    public String getClientId() {
        return clientId;
    }
    public void setClientId(String clientId) {
        this.clientId = clientId;
    }
    public String getBoardDate() {
        return boardDate;
    }
    public void setBoardDate(String boardDate) {
        this.boardDate = boardDate;
    }
    public int getBoardCount() {
        return boardCount;
    }
    public void setBoardCount(int boardCount) {
        this.boardCount = boardCount;
    }
    @Override
    public String toString() {
        return "BoardDTO [boardNo=" + boardNo + ", boardTitle=" + boardTitle + ", boardContent=" + boardContent
                + ", clientId=" + clientId + ", boardDate=" + boardDate + ", boardCount=" + boardCount + "]";
    }
}

5) src - mordel.BoardDAO

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package model;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

import javax.sql.DataSource;

public class BoardDAO {
    private static BoardDAO instance=new BoardDAO();
    private DataSource dataSource;
    private BoardDAO(){
        dataSource=DataSourceManager.getInstance().getDataSource();
    }
    public static BoardDAO getInstance() throws ClassNotFoundException{
        return instance;
    }
    public void closeAll(PreparedStatement pstmt,Connection con) throws SQLException{
        if(pstmt!=null)
            pstmt.close();
        if(con!=null)
            con.close();
    }
    public void closeAll(ResultSet rs,PreparedStatement pstmt,Connection con) throws SQLException{
        closeAll(pstmt,con);
        if(rs!=null)
            rs.close();
    }
    public Connection getConnection() throws SQLException{
        return dataSource.getConnection();
    }
    //여기서부터 코딩
}



※ DB connection 테스트

1) src - mordel.BoardDAO 에 checkDbconnect 추가

?
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
//DB Connection Test
public void checkDbconnect()throws SQLException{
    Connection con=null;
    PreparedStatement pstmt=null;
    ResultSet rs=null;
    ArrayList<ClientDTO> list=new ArrayList<ClientDTO>();
    try {
        con=dataSource.getConnection();
        String sql="select * from client";
        pstmt=con.prepareStatement(sql);
        rs=pstmt.executeQuery();
        while(rs.next()) {
            ClientDTO resultDTO=new ClientDTO(rs.getString(1),rs.getString(2),rs.getString(3),rs.getString(4),rs.getString(5),rs.getString(6));
            list.add(resultDTO);
        }
        for(int i=0;i<list.size();i++)
            System.out.println(list.get(i));
    }finally {
        closeAll(rs, pstmt, con);
    }
}

2) src - test.TestDBConnection.java

?
1
2
3
4
5
6
7
8
9
10
11
package test;

import java.sql.SQLException;

import model.BoardDAO;

public class TestDBConnection {
    public static void main(String[] args) throws ClassNotFoundException, SQLException {
        BoardDAO.getInstance().checkDbconnect();
    }
}





[참고] Exception in thread "main" java.lang.NoClassDefFoundError: org/apache/juli/logging/LogFactory 에러발생 시

- tomcat-juli.jar파일 다운로드(톰캣버전에 맞게) : https://mvnrepository.com/artifact/org.apache.tomcat/tomcat-juli



Maven Repository: org.apache.tomcat » tomcat-juli

Tomcat Core Logging Package VersionRepositoryUsagesDate9.0.x9.0.22Central12Jul, 20199.0.21Central13Jun, 20199.0.20Central15May, 20199.0.19Central14Apr, 20199.0.17Central12Mar, 20199.0.16Central12Feb, 20199.0.14Central14Dec, 20189.0.13Central13Nov, 20189.0.

mvnrepository.com

- Java\jdk1.8.0_211\jre\lib\ext 안에 tomcat-juli.jar 파일을 넣는다.



2. controller

1) src - controller.DispatcherServelt.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
package controller;

import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@WebServlet("/DispatcherServlet")
public class DispatcherServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    public DispatcherServlet() {
        super();
    }

    protected void doGet(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        handleRequest(request, response);
    }

    protected void doPost(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        request.setCharacterEncoding("utf-8");
        handleRequest(request, response);
    }


    private void handleRequest(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException{
        try {
            String command=request.getParameter("command");
            String url=HandlerMapping.getInstance().create(command).execute(request,response);
            if(url.trim().startsWith("redirect:"))
                response.sendRedirect(url.trim().substring(9));
            else
                request.getRequestDispatcher(url).forward(request, response);
        } catch (Exception e) {
            e.printStackTrace();
            response.sendRedirect("error.jsp");
        }
    }
}

2) src - controller.HandlerMapping.java

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
package controller;

public class HandlerMapping {
    private static HandlerMapping instance=new HandlerMapping();
    private HandlerMapping() {}
    public static HandlerMapping getInstance() {
        return instance;
    }
    public Controller create(String command) {
        Controller c=null;
        //메인
        //회원관리
        //게시판
        return c;
    }
}

3) src - controller.Controller.java(인터페이스)

?
1
2
3
4
5
6
7
8
package controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public interface Controller {
    public String execute(HttpServletRequest request, HttpServletResponse response) throws Exception;
}



'1.JAVA Web Programming > [4주차] 게시판 만들기' 카테고리의 다른 글

게시판 - webstudy-board - Index 페이지  (0) 2019.08.11
게시판 - webstudy-board - EL, JSTL  (0) 2019.08.07
게시판 - webstudy-board - board table 생성  (1) 2019.08.04
게시판 - webstudy-board - 기능명세서  (0) 2019.08.04
게시판 - webstudy-board - ERD, Class Diagram  (0) 2019.08.04

+ Recent posts

티스토리툴바
